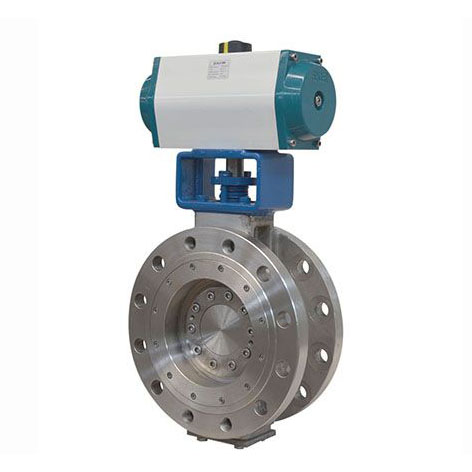

A Triple Offset Butterfly Valve has 3 separate offsets. Two of the offsets apply to the location of the shaft in respect to the centerline of the bore and the centerline of the disc/seat sealing surfaces. The third offset is the design in the axis of the seat cone angle.Triple Offset Butterfly Valves are essential in applications where bubble-tight shut off is required. In some applications, bubble-tight shut off cannot be achieved using double offset butterfly valves.

SPECIFICATIONS

• Size Range: 2” – 30”


• Pressure Class: ASME 150 – 600

• API Standard: 609

FEATURES

• Triple Eccentric Disc-Shaft

• Anti-Blow Out Stem

• Bi-Directional

• Firesafe Design

• Low Friction Body Seat

• Zero Leakage

• Wafer, Lug &  Flange Type

MATERIAL:

• Carbon Steel

• Stainless Steel

• Ductile Iron

• Other Materials upon Customer's Request
