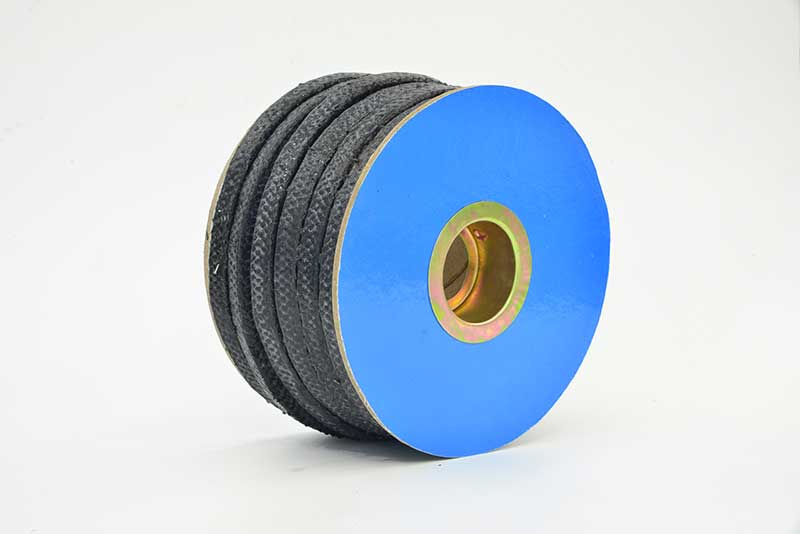

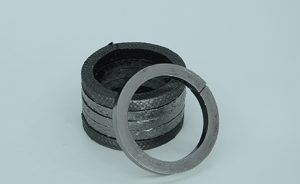

GH1588–Carbon Fiber Packing
Style GH1588Working Conditions
Temperature (ºC)-240—650
Pressure (Bar)276
Velocity (m/s)18
PH2-13

Composition: Carbon Fiber, Graphite, PTFE, braided

Application:

Chemical industry – for aggressive media pumping; Power industry – for sealing of high-temperature pumps feeding the boilers; Petrochemical industry – resistance to oils and hydrocarbons. Water, brine, factory waste, salt solutions, weak acid, mineral oil, etc.

Equipment:

Centrifugal pump, mixer, agitator, stern tube, etc.

Size:3×3mm–50×50mm;Others can be produced according to client’s requirement.

width=

Style GH1588Working Conditions
Temperature (ºC)-240—650
Pressure (Bar)276
Velocity (m/s)18
PH2-13

Composition: Carbon Fiber, Graphite, PTFE, braided

Application:

Chemical industry – for aggressive media pumping; Power industry – for sealing of high-temperature pumps feeding the boilers; Petrochemical industry – resistance to oils and hydrocarbons. Water, brine, factory waste, salt solutions, weak acid, mineral oil, etc.

Equipment:

Centrifugal pump, mixer, agitator, stern tube, etc.

Size:3×3mm–50×50mm;Others can be produced according to client’s requirement.
