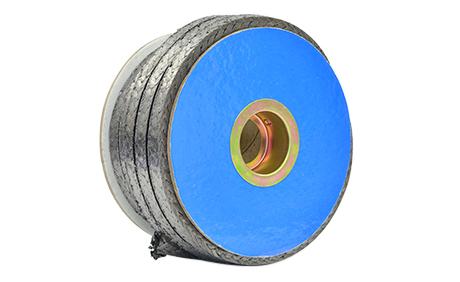

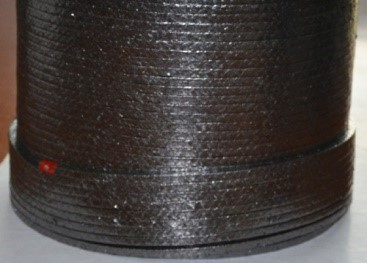

GH1851–Expanded Graphite Braided Packing
Size:3×3mm–50×50mm；Others can be produced according to client’s requirement
Style GH1851Working Conditions
Temperature (ºC)Atmosphere:-210~450Steam: up to 650
Pressure (Bar)Pump:27.5Valve:450
Velocity (m/s)20
PH0~14

Composition:

expanded graphite braided


Application:

Textile, power, chemical and mining industries. The products are almost suitable to all media, such as water, dilute acids and alkalies, organic compounds, oils and greases, etc.


Equipment:

An universal packing for piston, impeller pumps, flange, etc.

Request for quotation
Size:3×3mm–50×50mm；Others can be produced according to client’s requirement
Style GH1851Working Conditions
Temperature (ºC)Atmosphere:-210~450Steam: up to 650
Pressure (Bar)Pump:27.5Valve:450
Velocity (m/s)20
PH0~14

Composition:

expanded graphite braided


Application:

Textile, power, chemical and mining industries. The products are almost suitable to all media, such as water, dilute acids and alkalies, organic compounds, oils and greases, etc.


Equipment:

An universal packing for piston, impeller pumps, flange, etc.
