Product Features

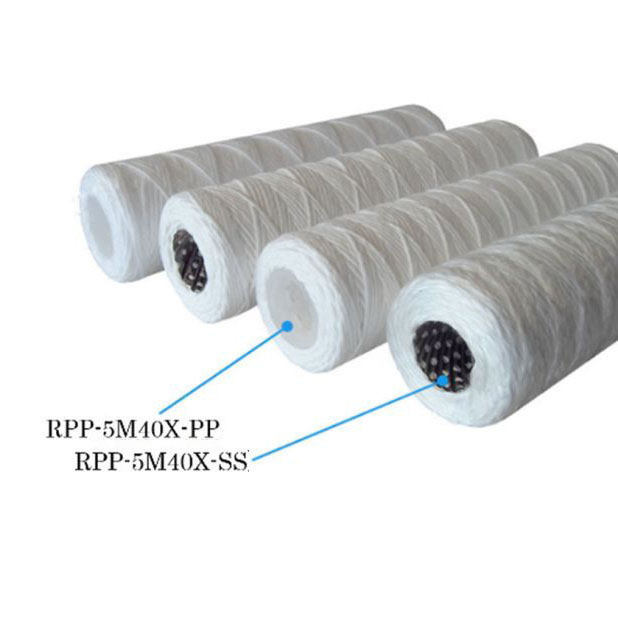

Multi-Holes Hardware Is Tightly Wound By Textile Fiber, Forming Different Cartridges With Different Retention Ratings.

Stand Higher Filtration Pressure With Wide Chemical Compatibility.

Available In Cotton, Polypropylene And Glass Fiber, Meeting Filtration Of Various Liquid. Effectively Remove Suspended Solids And Particles In The Liquid, And Has Strong Ability To Absorb Pollutants.

Materials Of Construction

Filter Media: Premium Bleached Cotton (FDA Listed), Cleaned Polypropylene(FDA Listed), Glass Fiber

Center Core: Polypropylene, 304 Stainless Steel, 316 L Stainless Steel

Dimension

Outside Diameter: 2.36” ~4.3”<60mm~110mm>

Inside Diameter: 1.1” ~1.18”<28mm~30mm>

Lengths: 9.75” ~40”<248mm~1016mm>

Specifications Can Be Customized

Performance Specifications

Retention Ratings: 0.5,1,2,3,5,7,10,15,20,25,30,40,50,75,100,150,200μm

Maximum Operating Temperature:  See Material Selection Guide

Applications

Filtration Of Industrial Water, Electroplating Solution, Chemical Raw Materials, Organic Solvents, Acid And Alkali Liquids In Chemical Process

Pre-Filtration Treatment Of Ultra Pure Water And Sterile Water, RO Pre-Filtration, Syrup, Chocolate And Various Slurry.
