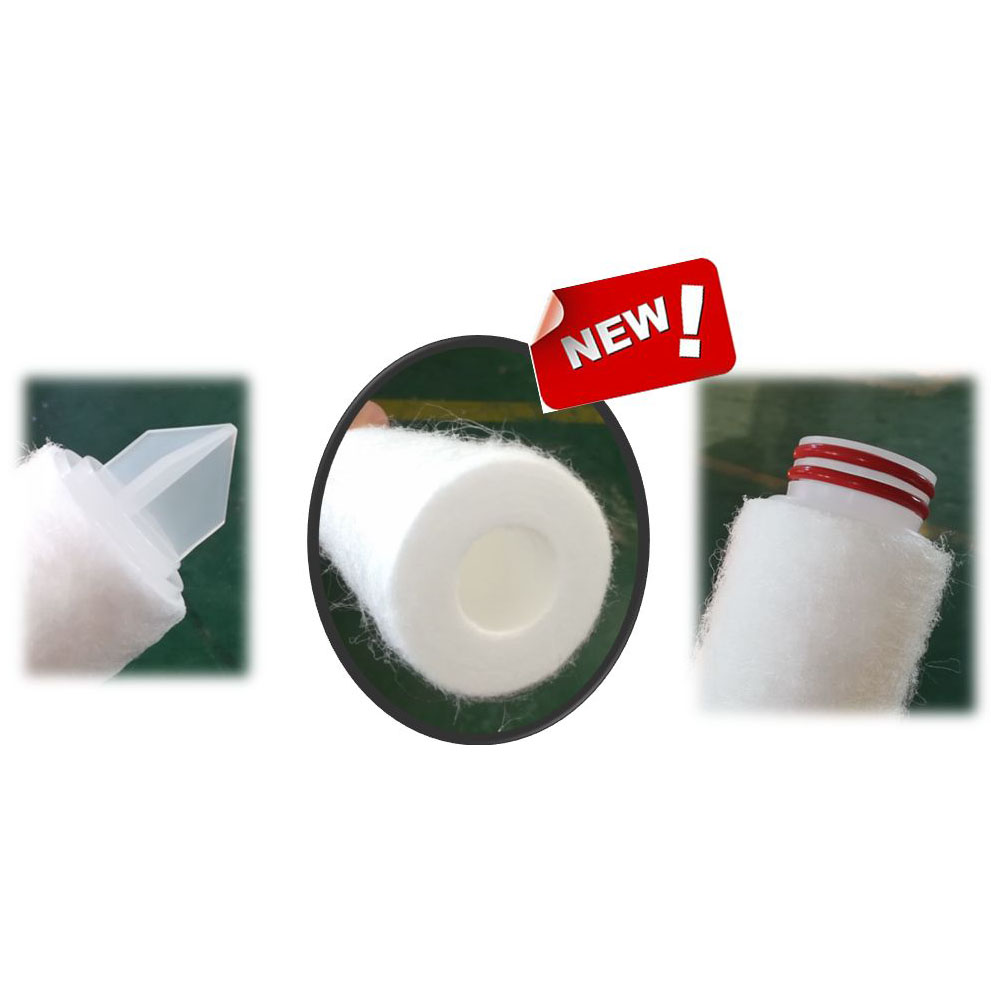

BLUELINE Polypropylene Yarm cartridge Filter cartridge(RPP-5M40X-SP)is new type filter element,small size, large filter area,high precision,No pollution, easy installation and replaced. Using of the micro porous membrane filtration, so the adsorption is small, therefore not stranded filtrate, and wide chemical compatibility, has broad applicability. BLUELINE Polypropylene Yarm cartridge Filter cartridge made byhigh-grade polypropylene as raw materials, with advanced technology, specialized precision equipment, through the process of hot melting spray wire, traction and winding to manufacture high-quality filter cartridge finished product.

It has depth construction with three layers from inner to outer,depth filtration inside,coarse fiber in the middle,and fine fiber in the surface.The cartridge has high capacity of dirt,low pressure drop, high flow rate,good chemical resistance. It can reduce the suspended substance, particulates and rust in the water effectively.

It is constructed of a loosened layer, compacted layer and precise layer to ensure highly efficient filtration performance.It can remove some impurities like suspended substances, particles and rust effectively.

Dimension

Outside Diameter: 2.36” ~4.3”<60mm~110mm>

Inside Diameter: 1.1” ~1.18”<28mm~30mm>

Lengths: 9.75” ~40”<248mm~1016mm>

Advantage:

1,Water treatment

2,PCB industry

3,Pre RO/ID water filtration

4,Chemicals,solvents

5,Plating solution

6,Electronic Industry

7,Petrochemical Process

8,Filtering for Food & Beverage
