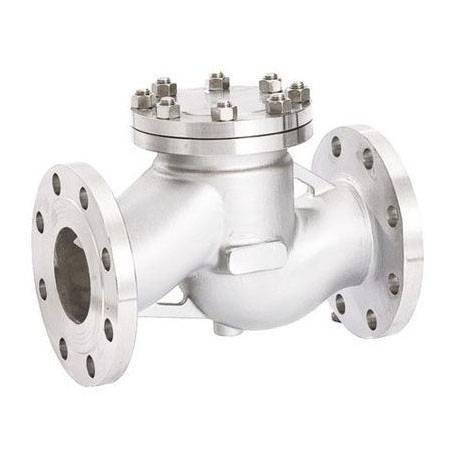

The Lift (Piston) Check Valve in common with all check valves, are used to prevent back flow in the line, and operate automatically, according to increases or decreases in line pressures.  Flow through a lift check is the same as a globe valve.  The disc raises up off of the seat as pressure below the disc increases, while a drop in pressure on the inlet side and a build up of pressure on the outlet side causes the valve to close.  Back pressure in the line holds the disc in the closed position.

SPECIFICATIONS

• Size Range: 2” – 42”

• Pressure Class: ASME 150 – 600

• ASME: B16.34

FEATURES

• Full Port

• Spring Loaded Available

MATERIAL:

• Carbon Steel

• Stainless Steel

• Low Temperature Steel

• Other Materials upon Customer's Request
