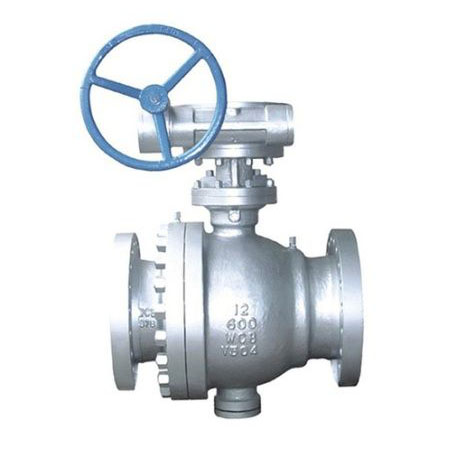

Product information
1.Operating: Extended lever for easy operation. Also available with gear box, motor actuators, pneumatic or hydraulic actuators for more difficult services.
2.Grease-jet joint: Installed in prescriptive part accord to the apply and satisfied with ecumenical situations and realize seal in spot with maintenance easily.
3.Body&Bonnet: Split or 3-piece, split body & bonnet for 8″ & small. Disassembles easily for repair or replacement of internal components.
4.Bore: Full bore or reduce bore. Full-bore design provides exceptional flow control.
5.End Connection: A choice of flanged RTJ flanged or butt-welding End for piping flexibility
6.Packing: Standard packing multiple v-teflon packing. combined with live loading, maintains packing compression under high-cycle and service applications. Graphite packing is used for high-temperature situation.
7.DDB: Double Block & Bleed. Trunnion ball valve adopt pre-tightening spring seat, the body cavity is isolated when the ball is in either fully closed or fully opened position, and remains medium inside of body cavity will be excreted by discharge valve.
8.A.S: Anti-statics. A metallic contact is always granted between ball and stem/body to discharge eventual statics build-up during service.
9.F.S: Fire safe, designed to API 607 or BS 6755 to grant their operation suitability in case of fire. Secondary metal-to-metal seal acts as back up if primary seal is destroyed by fire. Valves ordered for compliance with API 607 will be provided with graphite packing and gaskets.
10.Gasket: Standard gasket or double-gasket. Standard gasket made by high-performance rubber seal ring. Double-gasket made by high-performance rubber seal ring and spiral wound graphite.
FEATURES & BENEFITS
1. Full port, 2″~56″ (DN50~DN1400)
2. Working Pressure.: PN10/16/25/40,CLASS 150/300/600/900/1500
3. Working Temp.:-20℃ ~200℃ (-4℉~392℉)
4. Casting / Forged steel
5. Blow-out proof stem
6. Anti-static device
7. ISO 5211 Direct mounting pad(Option)
8. Flange dimension : ASME B16.5 CLASS 150/300/600/900/1500, EN 1092-1
9. Face to face: ASME B16.10 CLASS 150/300/600/900/1500, API 6D
Product information
1.Operating: Extended lever for easy operation. Also available with gear box, motor actuators, pneumatic or hydraulic actuators for more difficult services.
2.Grease-jet joint: Installed in prescriptive part accord to the apply and satisfied with ecumenical situations and realize seal in spot with maintenance easily.
3.Body&Bonnet: Split or 3-piece, split body & bonnet for 8″ & small. Disassembles easily for repair or replacement of internal components.
4.Bore: Full bore or reduce bore. Full-bore design provides exceptional flow control.
5.End Connection: A choice of flanged RTJ flanged or butt-welding End for piping flexibility
6.Packing: Standard packing multiple v-teflon packing. combined with live loading, maintains packing compression under high-cycle and service applications. Graphite packing is used for high-temperature situation.
7.DDB: Double Block & Bleed. Trunnion ball valve adopt pre-tightening spring seat, the body cavity is isolated when the ball is in either fully closed or fully opened position, and remains medium inside of body cavity will be excreted by discharge valve.
8.A.S: Anti-statics. A metallic contact is always granted between ball and stem/body to discharge eventual statics build-up during service.
9.F.S: Fire safe, designed to API 607 or BS 6755 to grant their operation suitability in case of fire. Secondary metal-to-metal seal acts as back up if primary seal is destroyed by fire. Valves ordered for compliance with API 607 will be provided with graphite packing and gaskets.
10.Gasket: Standard gasket or double-gasket. Standard gasket made by high-performance rubber seal ring. Double-gasket made by high-performance rubber seal ring and spiral wound graphite.
FEATURES & BENEFITS
1. Full port, 2″~56″ (DN50~DN1400)
2. Working Pressure.: PN10/16/25/40,CLASS 150/300/600/900/1500
3. Working Temp.:-20℃ ~200℃ (-4℉~392℉)
4. Casting / Forged steel
5. Blow-out proof stem
6. Anti-static device
7. ISO 5211 Direct mounting pad(Option)
8. Flange dimension : ASME B16.5 CLASS 150/300/600/900/1500, EN 1092-1
9. Face to face: ASME B16.10 CLASS 150/300/600/900/1500, API 6D
